Diamond CBN Wheel 6 Inch , 16mm Superabrasive Grinding Wheels

Name: Diamond CBN Wheel 6 Inch 16mm Superabrasive Grinding Wheels
Brand: TONGYU
Price: 30 USD

China Diamond CBN Wheel 6 Inch , 16mm Superabrasive Grinding Wheels wholesale

Brand Name : TONGYU

Model Number : 12V2(D2)

Place of Origin : China

MOQ : 5pcs

Price : Usd30-50 per piece

Payment Terms : T/T, L/C, D/P

Supply Ability : 2000pcs per month

Delivery Time : 5-20 days

Packaging Details : box

Name : Resin Bonded Diamond Grinding Wheel Dish Wheels

Type : Dish Wheel, Diamond Wheel, Grinding Wheel

Main content : Super Diamond Grits

Bonded type : Resin bonded

Out Diameter : 50-150mm

Inner Diameter : 10-32mm

Thickness : 10-16mm

Abrasive area width : 2-3mm

Contact Now

Resin Bonded Diamond Grinding Wheels,

Dish wheel type 12v2(D2)

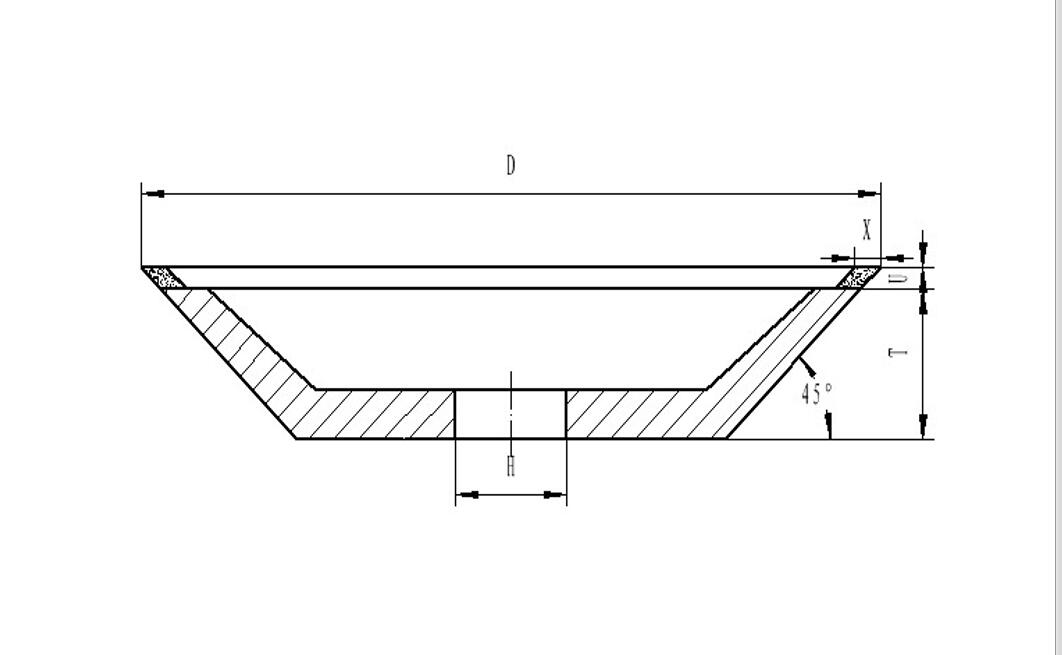

1. Sketch map of our diamond abrasive wheel

D: out diameter

H: inner diameter

T: thicknesss

X: abrasive area width

Diamond CBN Wheel 6 Inch , 16mm Superabrasive Grinding Wheels

2. Detail size matching of our normal grinding wheels.

We accept customed special sizes from client, prefer quantity not less than 10pieces.

Dimensions(mm)
D	T	H	X	U
50	10	10	2	2
75	13	10,20	3	3
100	13	20	3	3
125	16	32	5	3
150	16	32	5	3

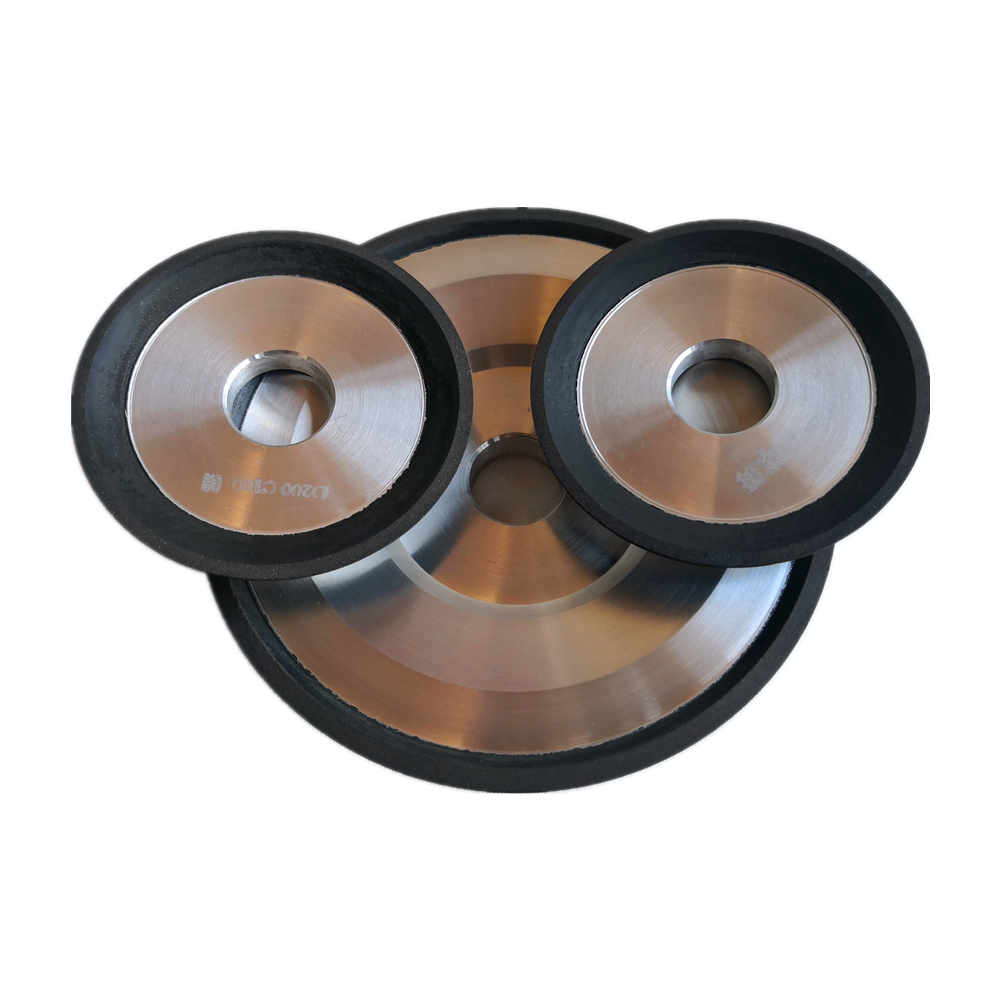

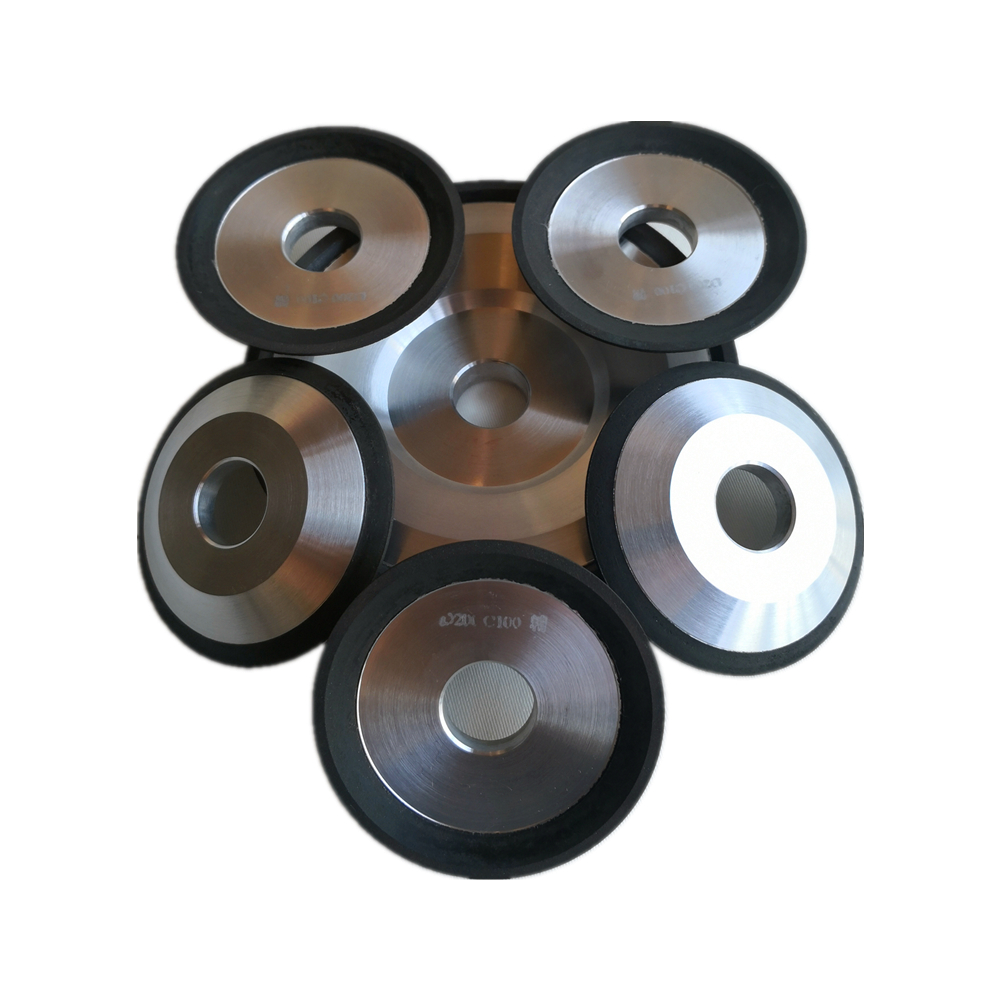

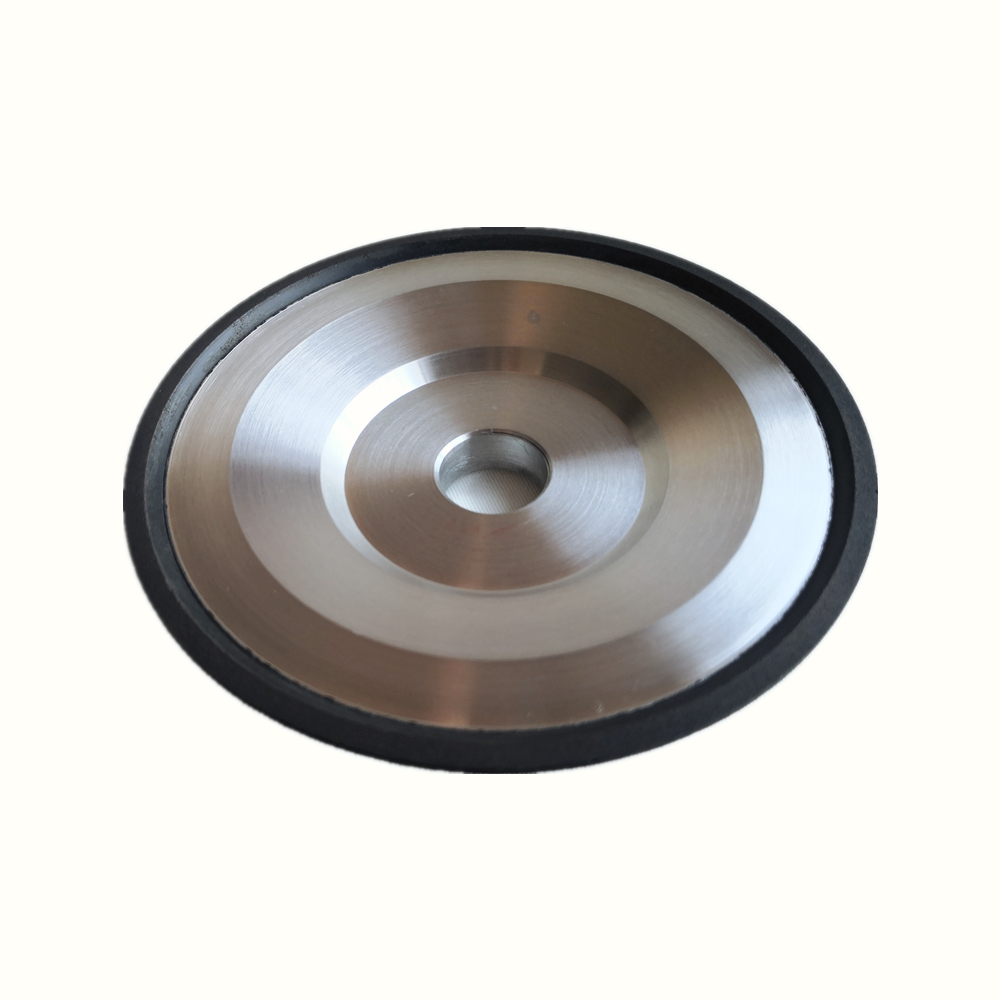

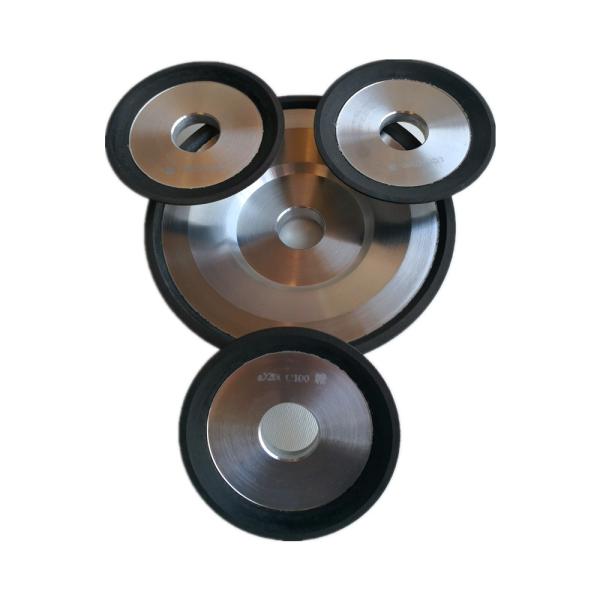

3. More of our diamond wheel picture

Diamond CBN Wheel 6 Inch , 16mm Superabrasive Grinding Wheels

4. Character of our grinding wheels

High wear resistance
Long processing life
Sharp with high abbrasive efficiency
Wide range of processing applications.

Over 15 years of developing and producing experience in high precision super hard material tools, we have

established a high efficiency system to provide stable performance wheel products.

We welcome yr free inquiry for any question in our diamond cutting wheels. In order to supply exact wheel

type and quotatioon to you, if possible, better for you to provide us more information like followings:

1. Yr processing objects.

2. Yr OD, ID, Thickness , Diamond concentration data etc.

3. Grit size if possible.

4. Rotary speed of your processing machine.

Many Thanks.
